SOLID CARBIDE DRILL




Diameter Range: 0.03–20 mm




CoroDrill® Dura 462 Drill with ease in all materials


CoroDrill® Dura 462 is your versatile ally for effortless hole making across multi-material applications. This short-hole drill delivers high process security and superior tool life in all materials so you can ramp up, lean back and save big. With a wide assortment available, you can count on predictable and trouble-free drilling in every operation.

Made for Durable Drilling

When you use CoroDrill® Dura 462 with the right setup and cutting data from CoroPlus® Tool Guide, you can expect a 100% tool life increase or more*. Our Zertivo® 2.0 PVD coating and micro-grained cemented carbide substrate are the true enablers, building resistance to high feeds and speeds. The result? Reliable productivity and reduced cost per hole.

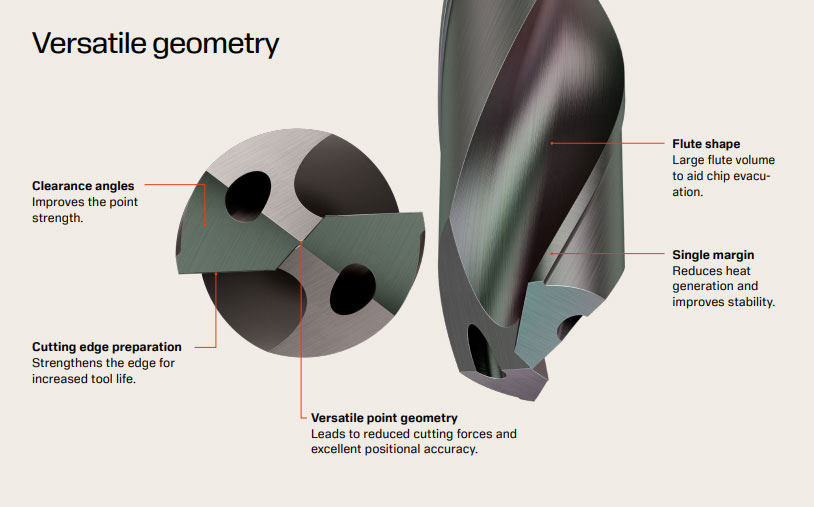

Unique grade X2BM


— Versatile geometry for multi-material drilling applications.
— Features a fine-grained cemented carbide substrate with a very well-controlled.
— microstructure to guarantee the highest performance in a wide range of applications.
— New versatile multi-layer PVD coating with our new Zertivo® 2.0 technology.
— All drills are fully coated.
— Tailored post-treatment for enhanced surface smoothness.

Features and Benefits

— Features a geometry designed to gain excellent machining stability and process security.
— Maximum productivity thanks to the new grade X2BM.
— Fully-coated drills ensure high wear resistance.
— A robust design ensures good centering and hole straightness securing best possible pre-hole conditions for subsequent operations like tapping or reaming.
— Reduced cost per hole and significantly improved tool life.

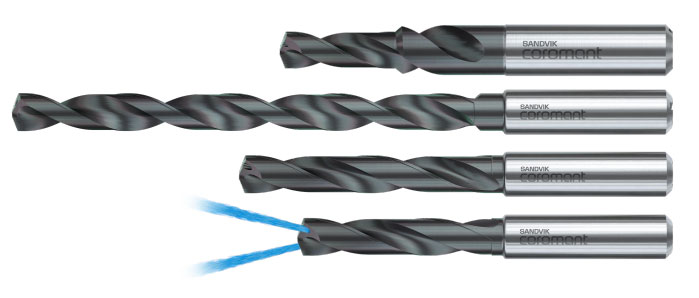

— Features a wide assortment, including type 1 and type 2 drills, stocked and ready to go.

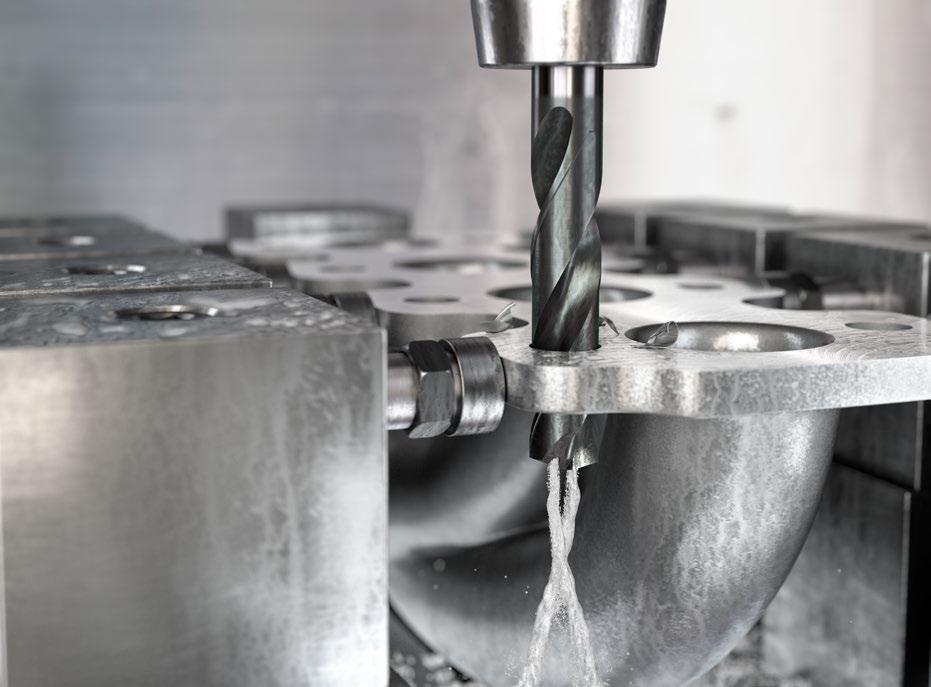

Application

— Diameter range 3.00–20.00 mm (0.118–0.787 inch).
— Drill depth up to 8×DC.
— Main industry segments.
— General engineering, automotive, aerospace, oil and gas, pump and valve.
— Typical components.
— Flanges, castings, sieves, hubs, valve bodies, pump bodies.

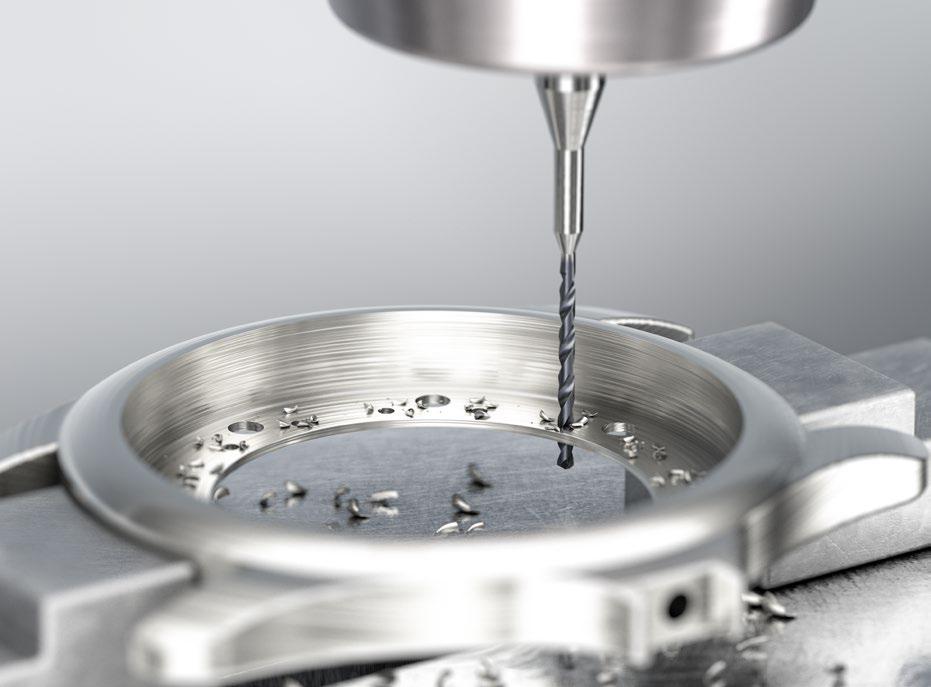

Application – Micro Drills

— Diameter range 0.030–3.00 mm (0.001–0.118 inch).
— Drill depth up to 6×DC.
— Coated and uncoated tools available.
Main industry segments: — Medical, electronics, general engineering, watch-making, automotive, oil and gas, aerospace.
Typical components: — Hydraulic valve, watch case, medical devices and surgical instruments, electrical connectors, electronics, mould-making, actuators, sensors, navigational systems

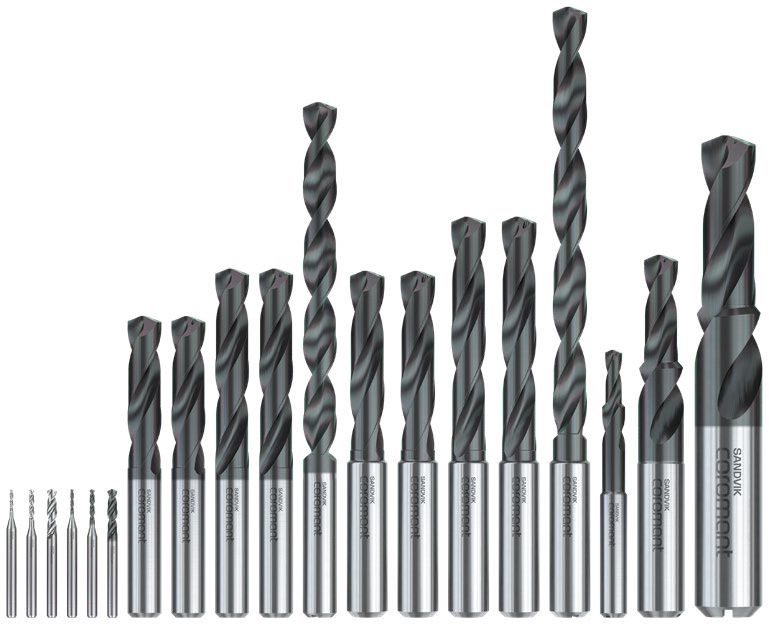

Assortment Information

CoroDrill® Dura 462 replaces the CoroDrill® 460 -XM product family. The previously named CoroDrill® 462 -XM micro drills (579 items) are now part of the CoroDrill® Dura 462 range, featuring the same geometry, coating and substrate but have an updated product code.
